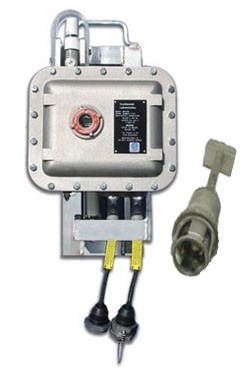

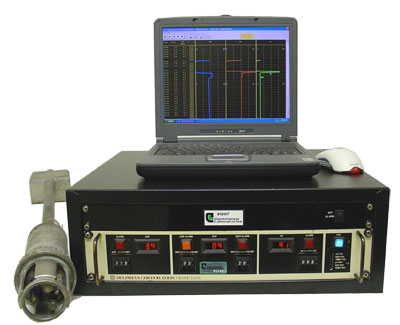

MUD DUCK H2S MANAGEMENT SYSTEM

The Mud Duck is the only instrument providing continuous, in the drilling fluid, measurement of total soluble sulfides, pH and H2S hazard potential. "At the source" measurement of these three parameters provides both an early warning system for the H2S gas and the means for managing mud sulfides in the solution.

FEATURES OF THE MUD DUCK INCLUDE:

  • Continuous monitoring of all soluble sulfides (pHS).
  • Continuous pH monitoring probe.
  • Continuous monitoring of drilling fluid temperature.
  • Real time Onscreen display of DHP(Delphian Hazard Potential), pH and pS (soluble sulfides).
  • Compatible with most WITS generating electronic drilling recorders (EDR).
  • Completely portable and compact.
  • Graphic User Interface (GUI).
  • Automatic Lag.
  • 24 Hour screen recall.
  • Disc Data storage for entire well.
  • Downloadable ASCII Output of data to floppy at 0.1, 0.2, 0.5 or 1.0 Meter intervals.
  • Metric or Imperial versions.
  • User SET Alarms
    * Low pH * High pH
    * Low pHS (Soluble Sulfides) * High pHS (Soluble Sulfides)
    * DHP(Dephian Hazard Potential) * Instrument fail
  • Hard copy and chart reprint options.
  • Striplog scale of 1:240
  • NOTE: The Mud Duck is not compatible with Invert or Oil based drilling fluids
