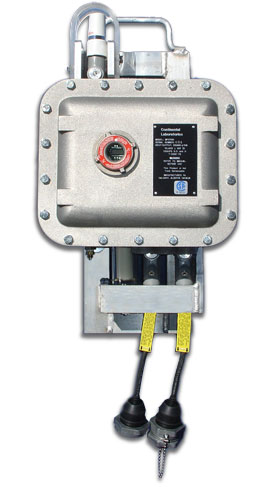

MP2500

FEATURES OF THE REMOTE MINIPAC 2500 SINGLE FILAMENT INCLUDE:

  • AT THE SOURCE ANALYSIS.
  • RELIABLE SECURE DATA TRANSMISSION FROM SOURCE TO WORK AREA.
  • NO LONG POLY-FLOW TUBING.
  • COMPLETELY PORTABLE AND COMPACT.
  • WORK AREA FREE OF HAZARDOUS EXHAUSTS.
  • TOTAL HYDROCARBON DETECTION (FILAMENT BASED).
  • CALIBRATED FOR LINEAR RESPONSE.
  • USABLE ON REGULAR DRILLING OPERATIONS AND UNDERBALANCED DRILLING OPERATIONS.

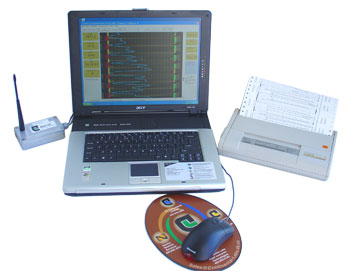

  • WINDOWS BASED.
  • WITS COMPATIBLE.
  • SELECTABLE SCALES (LINEAR OR LOGARITHMIC)
  • 24 HOUR SCREEN RECALL.
  • PRINTED HARD COPY WITH CHART REPRINT OPTION.
  • AUTOMATIC LAG.
  • HARD DRIVE DATA STORAGE.
  • SIMPLICITY IN DATA DOWNLOAD (ROP, DEPTH, GAS, & WITS PARAMETERS).
  • DOWNLOAD IN UNITS, %, or PPM.
  • AUTO CALCULATED PENETRATION RATE.
  • USER SET VISUAL AND AUDIBLE ALARMS.
  • AUTOMATIC RECORDED READINGS.
  • AUTO AND OFFSET ZEROING OF INSTRUMENT.
  • METRIC AND IMPERIAL VERSIONS.
  •  CSA APPROVED & CERTIFIED

FEATURES OF THE REMOTE 2500 DUAL FILAMENT INCLUDE(S):

  • ALL OF THE FEATURES OF THE REMOTE SINGLE FILAMENT MP2500 Plus :
  • DUAL CURVE - FIRST CURVE DETECTS TOTAL HYDROCARBON CONTENT (c1, & ABOVE),   SECOND CURVE DETECTS TOTAL HEAVY HYDROCARBON CONTENT (c2, c3, c4, c5, & ABOVE).
  • OPTIONAL CURVE - THIRD CURVE DETECTS H2S OR pH.
  • ZEROING BY-PASS (ZERO THE GAS DETECTOR FROM THE   COMFORTS OF YOUR WORK AREA - NO NEED TO DISCONNECT POLY-FLOW FROM MAIN UNIT TO ZERO IT).
  • CSA APPROVED & CERTIFIED
  • Brochure
